Product Reference
Environment Indoor
Installation Ceiling Surface
Construction & Materials
Housing Die Cast Aluminium,Milled Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 9.0W
System Power Watts 10.3W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 33V-36Vdc/250mA
Controls
Standard Switchable On/Off
Optional DDIM,Non Dimmable

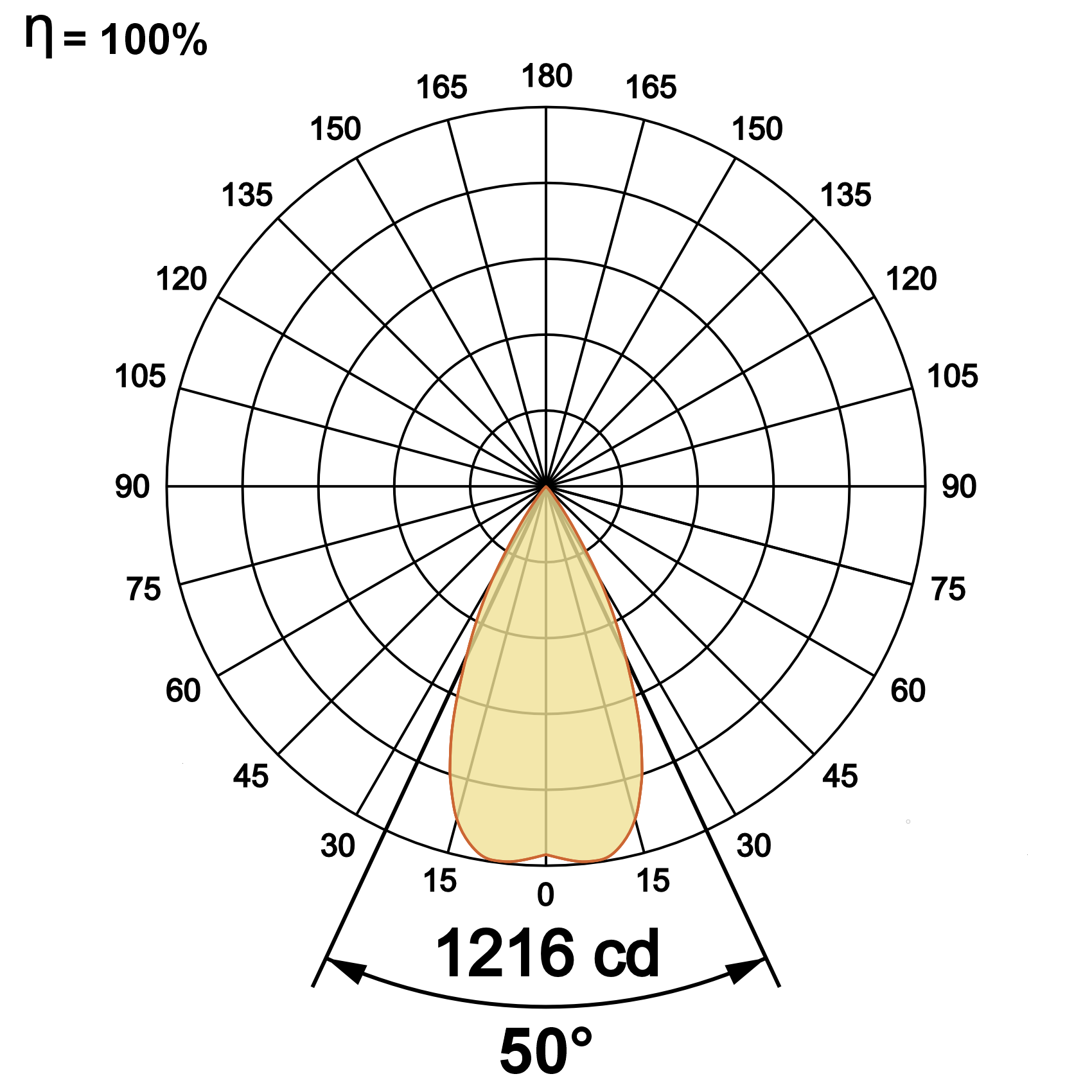

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Spotboy Pro SF 50 | 10W | WW27K | CRI80 | 23°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spotboy Pro SF 50 | 10W | 948 | 92 | 2700K | WW27K | CRI80 | 23°(SS) | White | SWH | Non Dimmable | On/Off |
| 979 | 95 | 3000K | WW30K | CRI90 | 30°(MD) | Black | SBL | Dali Dimmable | DDIM | ||
| 1030 | 100 | 4000K | NW40K | 33°(WD) | Custom | CSM | |||||
| 1051 | 102 | 5700K | CW57K | 50°(VWD) | |||||||
| Spotboy Pro SF 50 | 10W | WW27K | CRI80 | 23°(SS) | SWH | On/Off | |||||
