Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens -
Primary Reflector PC metallised
Secondary Reflector Black Raster – ABS
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 10.0W
System Power Watts 11.5W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI90
Led Type SMD high power
LED Fitted -
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable
.png)

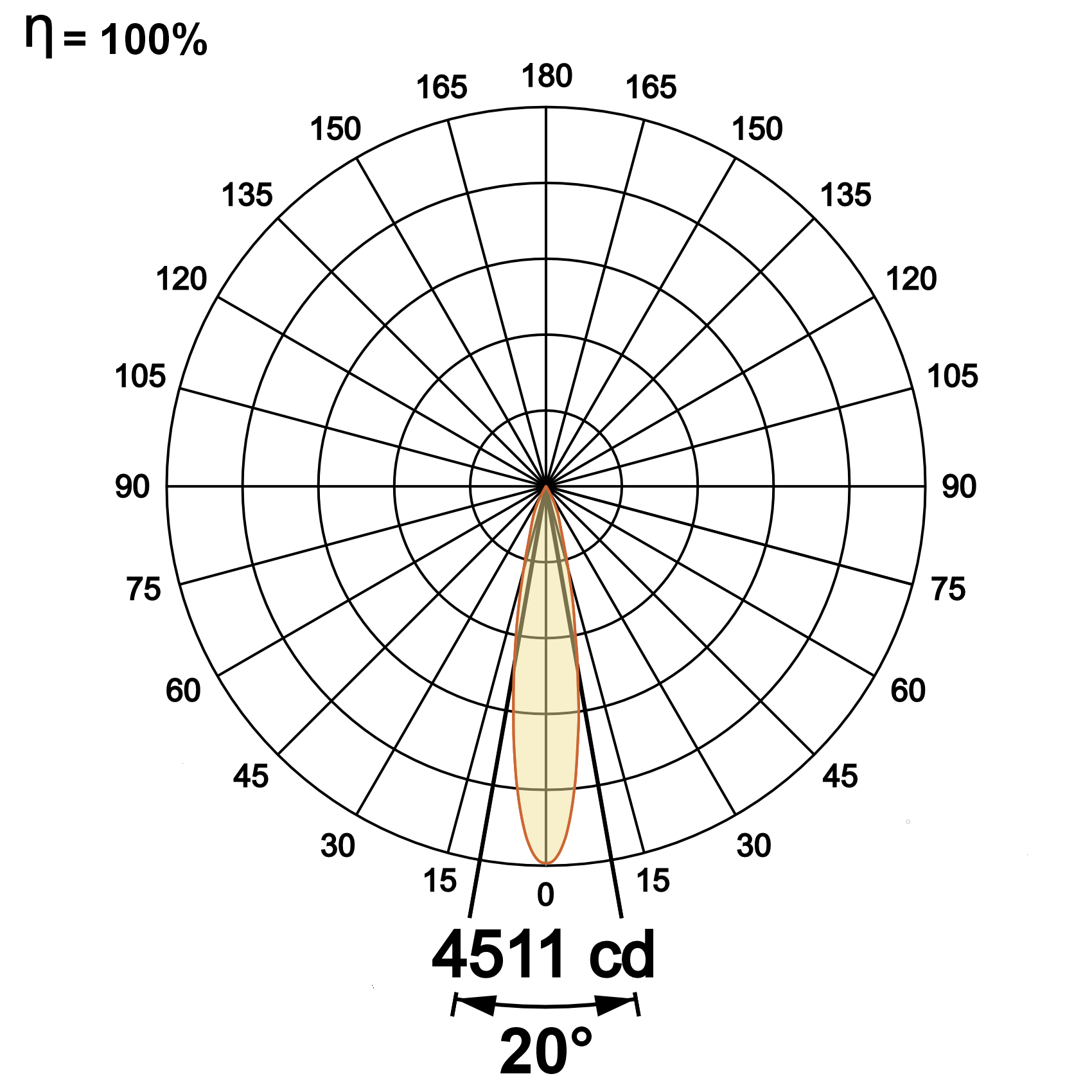

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Dark Knight 5 | 12W | WW27K | CRI90 | 20°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dark Knight 5 | 12W | 759 | 66 | 2700K | WW27K | CRI90 | 20°(SS) | White | SWH | Non Dimmable | On/Off |
| 794 | 69 | 3000K | WW30K | 30°(MD) | Black | SBL | Phase Dimmable | PDIM | |||
| 863 | 75 | 4000K | NW40K | 49°(WD) | Custom | CSM | Dali Dimmable | DDIM | |||
| 886 | 77 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| Dark Knight 5 | 12W | WW27K | CRI90 | 20°(SS) | SWH | On/Off | |||||
