Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Milled Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 1.2W
System Power Watts 1.6W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.5
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI90
Led Type SMD high power
LED Fitted -
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,Non Dimmable

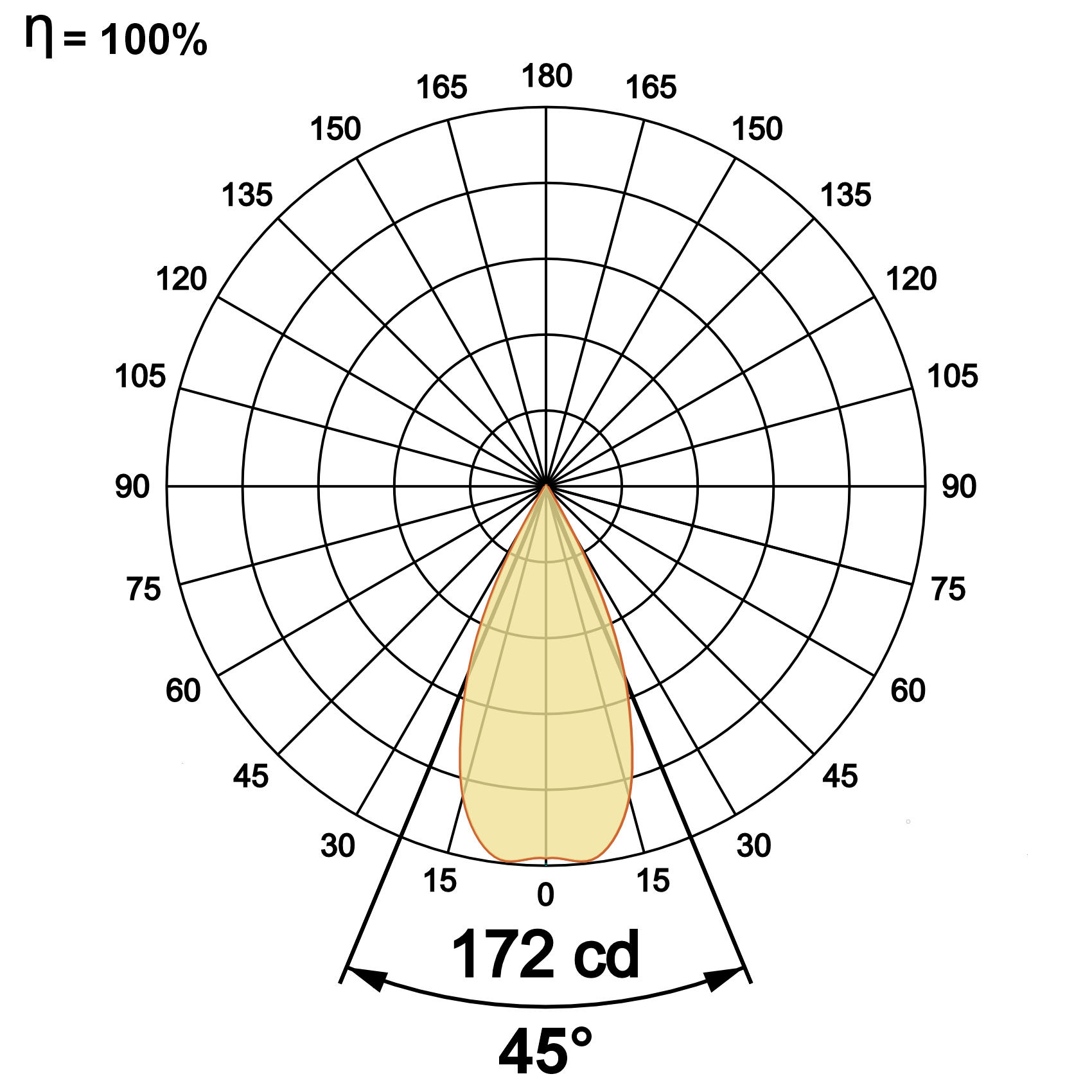

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Dot F | 1W | WW27K | CRI90 | 16°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dot F | 1W | 120 | 75 | 2700K | WW27K | CRI90 | 16°(SS) | White | SWH | Non Dimmable | On/Off |
| 125 | 78 | 3000K | WW30K | 25°(MD) | Black | SBL | Phase Dimmable | PDIM | |||
| 134 | 84 | 4000K | NW40K | 45°(WD) | Custom | CSM | Dali Dimmable | DDIM | |||
| 139 | 87 | 5700K | CW57K | ||||||||
| Dot F | 1W | WW27K | CRI90 | 16°(SS) | SWH | On/Off | |||||
