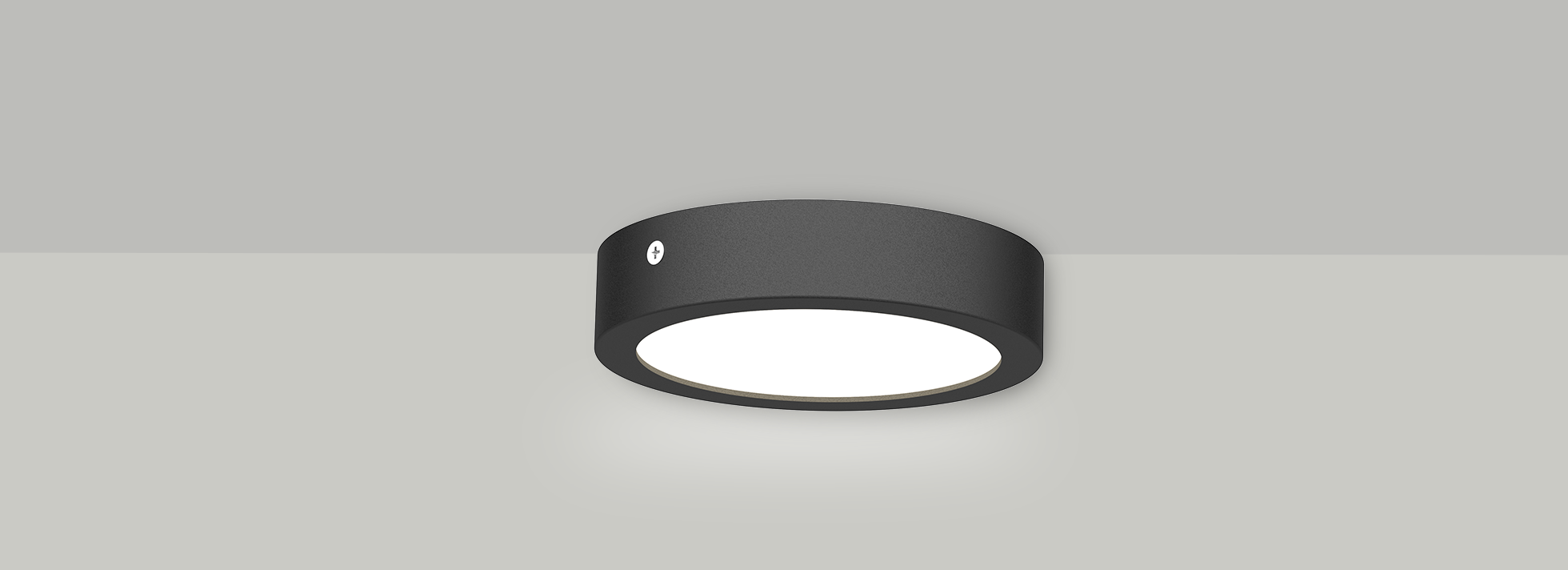

Product Reference
Environment Indoor
Installation Ceiling Surface
Construction & Materials
Housing Die Cast Aluminium
Primary Lens PMMA
Primary Reflector White Optics
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Opal PC
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 8.6W
System Power Watts 9.9W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Osram/Samsung Mid power LED array 9V-12Vdc/700mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable

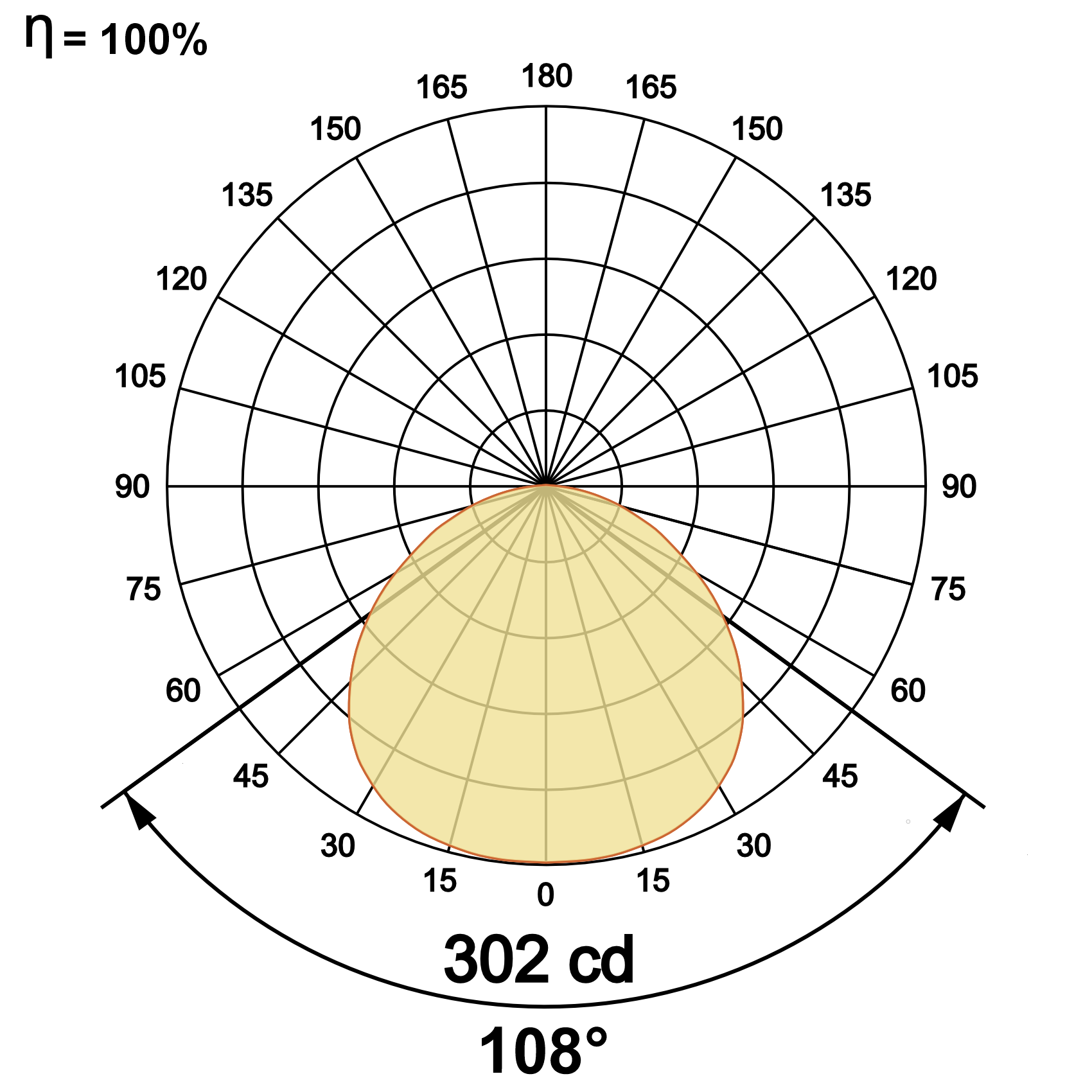

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iPlane Round Surface | 10W | WW27K | CRI80 | 108° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iPlane Round Surface | 10W | 851 | 86 | 2700K | WW27K | CRI80 | 108° | White | SWH | Non Dimmable | On/Off |
| 881 | 89 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 931 | 94 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
| 960 | 97 | 5700K | CW57K | ||||||||
| iPlane Round Surface | 10W | WW27K | CRI80 | 108° | SWH | On/Off | |||||
